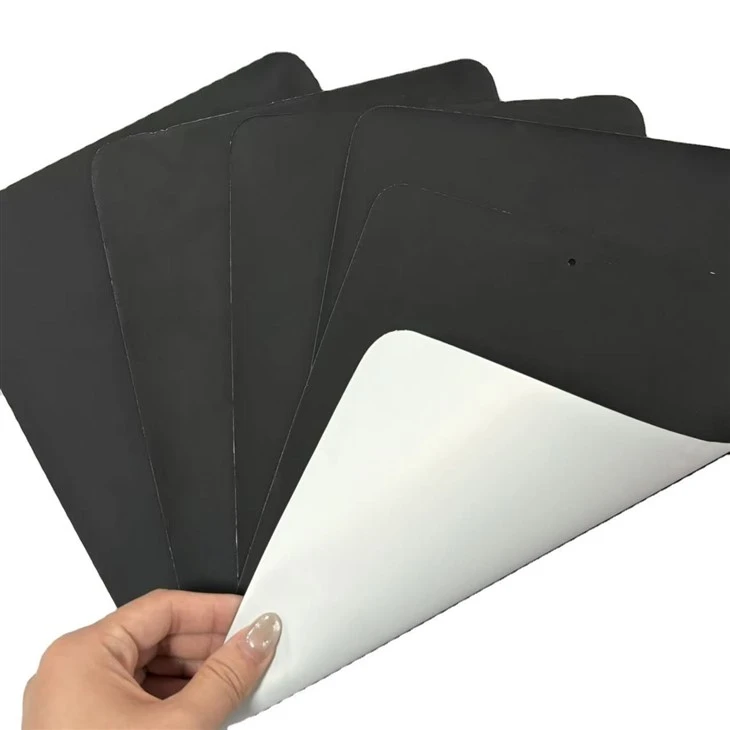

Black Tpu Film
Material:TPU
Thickness:0.35-1.0mm
Width:1.37m/1.4m
Color:Various colors can be customized
MOQ:500Meters
Term of Payment:By T/T, 30% deposit and 70% balance payment before delivery
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
One-stop shoe material Factory in China
We supply premium shoe materials and industrial raw materials. As a trusted shoe material supplier, we provide bespoke customization, competitive pricing and efficient fast delivery.
Black TPU film (thermoplastic polyurethane film) is a high-density, aromatic or aliphatic synthetic elastomeric membrane manufactured through continuous precision extrusion. Designed to combine high elasticity with extreme mechanical resistance, this opaque black polymer film delivers superior hydrostatic head ratings ($\ge 10,000\text{ mm H}_2\text{O}$), high tensile strength at break ($\ge 45\text{ MPa}$), and high abrasion resistance for seamless footwear hot-melt overlays, waterproof textile lamination, inflatable bladders, and industrial protective barrier films. Solamni produces continuous roll goods in controlled gauges ($0.015\text{ mm} - 2.0\text{ mm}$) with strict thickness uniformity ($\pm 0.002\text{ mm}$) to ensure seamless high-frequency welding and heat-press processing.
Technical Specifications Matrix
| Engineering Property | Physical / Chemical Specification Benchmark | Test Standard Reference |
| Shore Hardness Range | 80A / 85A / 90A / 95A / 98A / 64D (Customizable) | ASTM D2240 / ISO 868 |
| Melting Point Range | $110^\circ\text{C} - 165^\circ\text{C}$ (Vicat Softening Temperature: $85^\circ\text{C} - 130^\circ\text{C}$) | ASTM D1525 / ISO 306 |
| Tensile Strength at Break | $\ge 45\text{ MPa}$ | ASTM D412 / ISO 37 |
| Elongation Rate (%) | $450\% - 700\%$ (Complete elastic recovery without permanent set) | ASTM D412 / ISO 37 |
| Moisture Vapor Transmission Rate | Low MVTR ($< 500\text{ g/m}^2/24\text{h}$) to High Breathability ($\ge 8,000\text{ g/m}^2/24\text{h}$) | ASTM E96 Procedure B |
| Hydrostatic Head Rating | $\ge 10,000\text{ mm H}_2\text{O} - 20,000\text{ mm H}_2\text{O}$ | AATCC 127 / ISO 811 |
| Processing Methods | High-Frequency (RF) Welding, Ultrasonic Bonding, Heat Press Lamination | Factory Standard |
| Environmental Certifications | REACH SVHC compliant, RoHS 2.0, Oeko-Tex Standard 100, Halogen-Free | ISO 17025 |
Quality Control & Testing Standards
To prevent thermal delamination, gauge variation, and pinhole formation during continuous roll lamination, Solamni subjects every black TPU film production lot to rigorous inline optical and physical testing. Premium TPU resin granules pass through precision multi-layer blown or flat-die extrusion lines equipped with automatic gauge feedback control.
| [TPU Resin Desiccant Drying] ---> [Precision Flat-Die / Blown Extrusion] ---> [Inline Laser Thickness Scan] | [REACH & Oeko-Tex Certification] <--- [Hydrostatic & Tensile QC Lab] |
Finished rolls pass through automated laser thickness monitoring across usable widths up to $1.85\text{ m}$ ($73\text{ inches}$). In our testing laboratory, every lot undergoes:
- Hydrostatic Pressure & Pinhole Testing (AATCC 127): Verified under continuous water pressure to guarantee zero micro-pinhole leaks across ultra-thin gauges ($< 0.05\text{ mm}$).
- Bally Cold Flex & Hydrolysis Testing (ISO 5402-1): Exceeding 100,000 continuous flex cycles at $-30^\circ\text{C}$ with zero embrittlement, cracking, or color bleeding.
Industrial Application Scenarios
Solamni black TPU film is engineered for high-performance manufacturing sectors requiring durable elasticity and waterproof barriers:
- Athletic & Outdoor Footwear: No-sew hot-melt overlays, toe-cap protection, eyelet reinforcement, structural shoe upper laminates, and decorative matte/gloss accent films.
- Waterproof Outdoor Textiles & Apparel: Seam sealing tapes, rainwear composite laminates, tactical gear barriers, and military garment linings requiring high hydrostatic resistance.
- Industrial & Medical Inflatables: High-frequency welded air bladders, orthopedic support cushions, industrial containment liners, and automotive interior sound-damping membranes.
Frequently Asked Questions (FAQ)
How do I prevent delamination or bubbling when heat-press laminating TPU film onto synthetic fabrics?
Can your black TPU film be customized with specific surface finishes like matte or high gloss?
Yes. We offer mirror gloss, fine velvet, coarse matte, and deep geometric embossed surface finishes directly from the extrusion casting roller, eliminating the need for secondary surface treatment.
What is the lead time for custom Shore hardness, gauge development, and sample dispatch?
Standard gauges ($0.05\text{mm}, 0.1\text{mm}, 0.15\text{mm}, 0.2\text{mm}$) in stock ship in 48 hours with zero MOQ. Custom Shore hardness formulations (80A to 64D) or custom roll widths carry an MOQ of $500\text{ kg}$, with sample rolls dispatched in 3 to 5 business days. Technical specialist Jason Lee provides direct engineering assistance within 12 hours.
Shows Products
Why Choose Us
why choose our products
We specialize in providing material high-quality for industrial applications. Our focus on B2B sourcing ensures that you get the best prices for large orders, with the flexibility to customize the fabric to meet your specific needs. Whether you require bulk quantities for production or specialized orders, we can help you achieve your goals with fast delivery and exceptional customer support.
Bulk Sourcing: Competitive pricing for large-scale orders.
Customization: Flexible solutions tailored to your industry needs.
Global Shipping: Fast, reliable delivery to international markets.
High-Quality Standards: Rigorous testing and quality assurance to ensure performance and durability.
Our Advantage
1
Pick and choose high quality raw materials.
2
Employ experienced workers, use professional machines
3
Make casual inspection regularly during the process of production.
4
we have a QC team to control the making process for every order. And also makes double checks to an AQL of clients choosing before packaging.
5
Keep on a strict quality standard.
F A Q
A:About 25-35 days after confirm the details .
A:30% in advance, 70% in the period of shipment, or 50% in advance, 50% in the period of shipment. Depends on order quantity.
A:We accept T/T, Paypal,West union ,FOB and so on.
30% deposit in advance and balance before shipment.
A: 3-5 days after confirming all details, and samples for free.
Solamni Import And Export Co., Ltd.
We sincerely welcome friends from all over the world to cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiries soon.
Email:ace01@eurus-cn.com Phone+8613459576329
Whatsapp+8613459576329
Hot Tags: black tpu film, China black tpu film manufacturers, suppliers, factory, Hot Melt Film, TPU Film for Fusing, TPU Film for High Frequency Welding, TPU Film for Shoes, TPU Film for Sneaker, TPU Film for Sport Shoe
