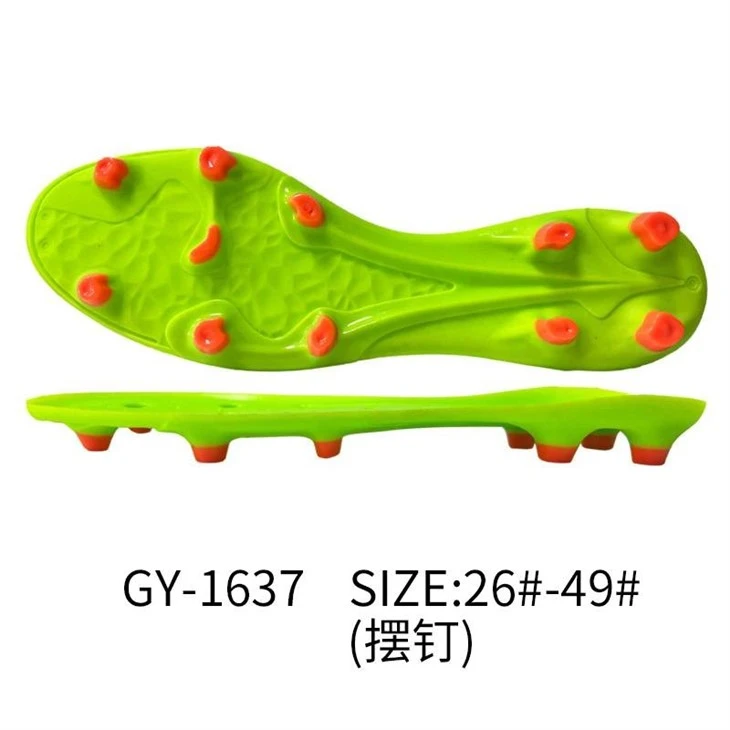

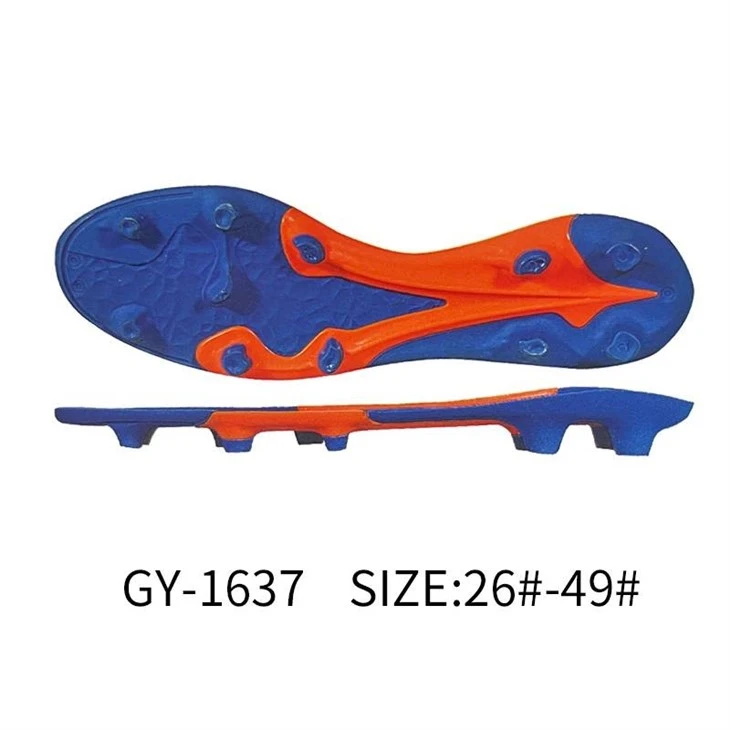

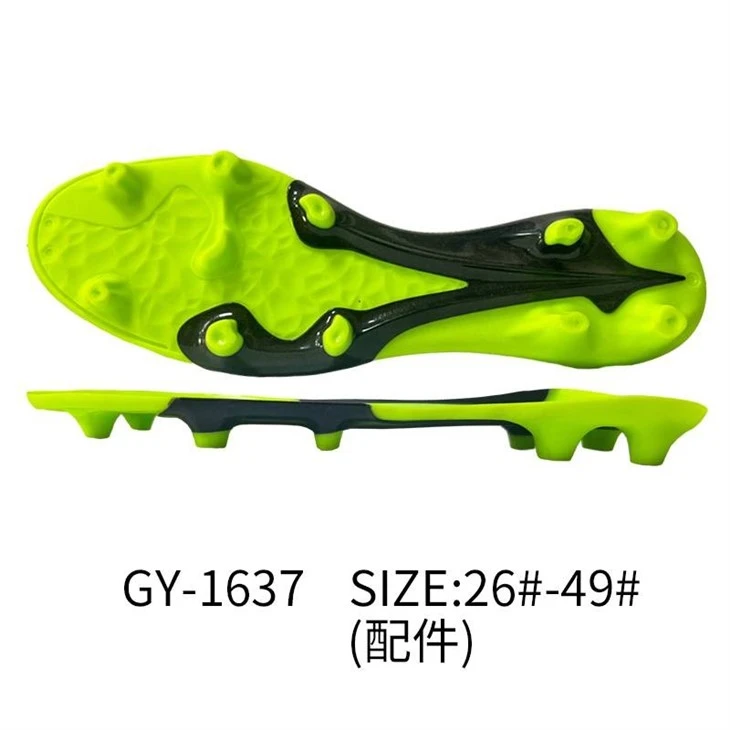

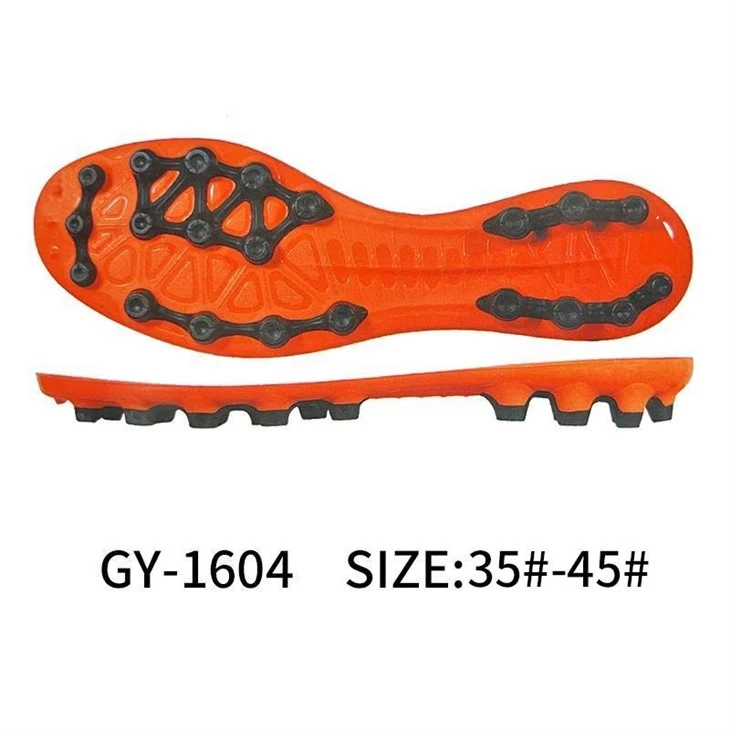

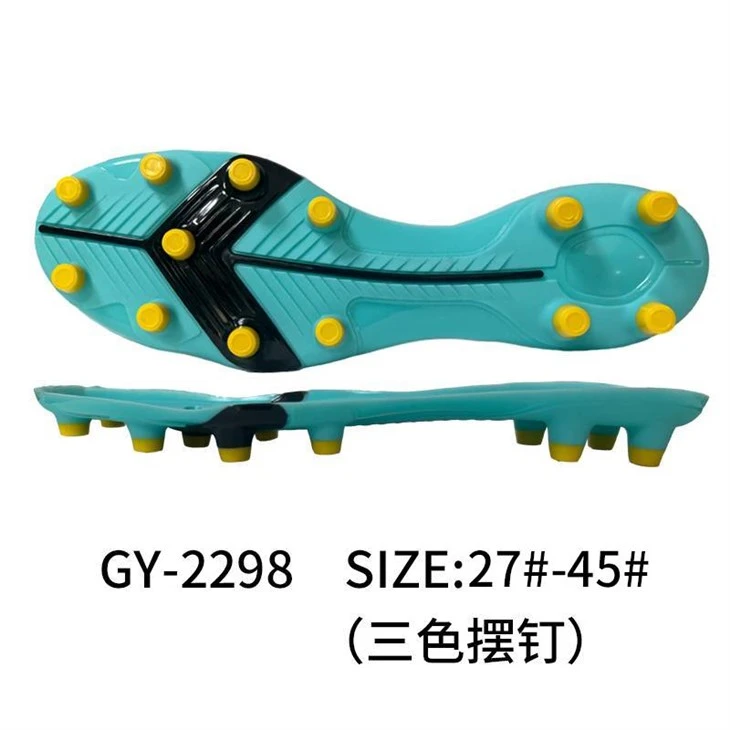

Tpu Outsole Football Boots
Material:TPU
Size：31-44
Color:Various colors can be customized
MOQ:2000Pairs
Term of Payment:By T/T, 30% deposit and 70% balance payment before delivery
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
One-stop shoe material Factory in China
We supply premium shoe materials and industrial raw materials. As a trusted shoe material supplier, we provide bespoke customization, competitive pricing and efficient fast delivery.
Meta Description
TPU outsole football boots: injection stud plates, Shore 70D-75D, DIN ≤100mm³, 150k flex cycles. MOQ 2,000 pairs, REACH/RoHS. Get free samples now!
A TPU outsole for football boots is an injection-molded thermoplastic polyurethane base plate fitted with traction studs or blades, engineered to transfer mechanical energy from the foot to the playing surface while resisting abrasion and repeated flex fatigue. Solamni produces TPU football boot outsoles in Shore 70D to 75D grades with conical, bladed, or hybrid stud geometries, manufactured on vertical injection lines with in-house aluminum and steel tooling. The factory supports OEM stud pattern design, color matching, and co-molding with EVA or PU midsole foam, with batch production from 2,000 pairs and REACH/RoHS compliance for international sportswear accounts.
Technical Specifications Matrix
| Parameter | Specification |
|---|---|
| Material | Injection-grade thermoplastic polyurethane (TPU), polyester-based; optional glass-fiber reinforced TPU (10–20% GF) |
| Shore Hardness | 70D – 75D (±3); 65A – 70A for soft-touch stud caps |
| Density | 1.12 – 1.20 g/cm³ (unfilled); 1.25 – 1.35 g/cm³ (GF-reinforced) |
| Tensile Strength at Break | ≥ 35 MPa (unfilled); ≥ 45 MPa (20% GF) |
| Flex Modulus | ≥ 1,800 MPa (75D grade) |
| Abrasion Resistance (DIN 53516) | ≤ 100 mm³ |
| Flex Resistance | ≥ 150,000 cycles at 22.5°, no crack propagation (SATRA TM161) |
| Stud Pull-Out Strength | ≥ 150 N per conical stud; ≥ 120 N per blade |
| Low-Temp Impact Resistance | No fracture after 1 kg drop from 1 m at −10°C |
| Weight per Plate (EU 42, single) | 90 g – 160 g |
| Stud Geometry | Conical / bladed / hybrid / detachable screw-in |
| Surface Finish | Matte textured / high-gloss / custom logo deboss / dual-color injection |
| Environmental Compliance | REACH SVHC, RoHS 2.0, OEKO-TEX Standard 100 (optional) |
Quality Control & Testing Standards
Solamni applies a material-to-assembly QC protocol specific to TPU football boot outsoles, covering resin lot verification, injection parameter locking, and finished-plate destructive testing.
Injection process control.
We use the world's most advanced nano-materials and ultra-high-standard metal materials to make our products,which are properly used to ensure the high quality of our products,as well as to improve the resistance,durability and waterproofness of our products.
Physical destructive testing (per batch, AQL 2.5).
- Hardness - Shore D durometer, 5 readings per plate, ASTM D2240.
- DIN abrasion - 40 m travel, 10 N load, DIN 53516.
- Flex resistance - Ross flex tester, 150,000 cycles at 22.5°, SATRA TM161.
- Stud pull-out - universal testing machine at 50 mm/min with custom stud grip fixtures.
- Low-temperature impact - −10°C conditioning for 4 hours, 1 kg free fall from 1 m.
- Dimensional accuracy - coordinate measuring machine (CMM), stud height ±0.2 mm, plate curvature ±0.5 mm vs. CAD.
- Color consistency - spectrophotometer ΔE ≤ 1.2 against approved master plate.
Chemical and regulatory testing.
Each TPU resin lot is verified by melt flow index (MFI at 190°C / 10 kg) and FTIR spectral matching against the approved grade. Glass-fiber content is confirmed by ash test (ISO 3451-1) for reinforced grades. Finished plates are screened by GC-MS for REACH SVHC and by ICP-OES for RoHS restricted elements. Third-party SGS or Intertek test reports are issued on request for EU, North American, and Japanese brand programs.
Equipment backing production stability.
The plant operates 14 vertical injection molding machines (200T–400T), 8 desiccant dehumidifying dryers, 2 CNC mold machining centers for in-house tooling, a CMM inspection station, and an automatic plate-weight sorter. This setup supports cavity-to-cavity weight variation below 1.5% and stud-height consistency across 8-cavity and 12-cavity tools, reducing fitment issues in downstream boot assembly.
Industrial Application Scenarios
Soccer / association football match boots.
TPU outsoles in Shore 70D–75D with bladed or conical stud geometry are used for elite-level FG (firm ground) and AG (artificial grass) boots. Glass-fiber reinforced grades (15–20% GF) increase flex modulus above 2,500 MPa for energy return during sprint acceleration, while unfilled 70D grades offer better ground conformity for technical play.
Rugby boots.
Longer conical studs (15–21 mm) and detachable screw-in stud configurations are specified for rugby union and league boots, where stud pull-out strength above 150 N is critical under scrum and ruck loading. TPU's resistance to mud and moisture absorption maintains traction performance across wet match conditions.
American football cleats.
TPU outsole plates with multi-directional stud patterns are used for skill positions (wide receiver, defensive back) where lightweight construction and lateral grip are prioritized. Removable stud options allow conversion between natural grass and turf field surfaces.
Lacrosse and field hockey.
Hybrid stud-blade TPU outsoles provide the combination of forward traction and lateral stability required for these sports. Dual-color injection molding enables brand-color zone differentiation between the heel and forefoot plate sections.
Aftermarket and boot repair.
Solamni also supplies replacement TPU outsole plates to boot repair workshops and private-label brands, with standard stud patterns compatible with major upper-lasts. Detachable stud soles support the spare-studs accessory market.
Frequently Asked Questions (FAQ)
Q: When should a football boot outsole use glass-fiber reinforced TPU instead of standard unfilled TPU?
Q: What thread standard and compatibility apply to detachable screw-in TPU studs?
A: We produce studs in M6 × 1.0 mm and M8 × 1.25 mm metal-thread inserts, compatible with standard rugby and football boot wrench sizes. Stud length ranges from 8 mm to 21 mm. Metal inserts are overmolded into the TPU stud body and tested to ≥ 150 N pull-out before shipment.
Q: What is the lead time for custom color and logo-debossed TPU outsole production?
A:Standard stock-color plates ship in 15–20 days for a 2,000-pair order. Custom Pantone color matching requires 5–7 additional days for color chip approval. Logo debossing is machined into the mold at no extra cost for orders above 5,000 pairs. For sample evaluation and material grade selection, contact our English-speaking technical engineer Jason Lee directly.
